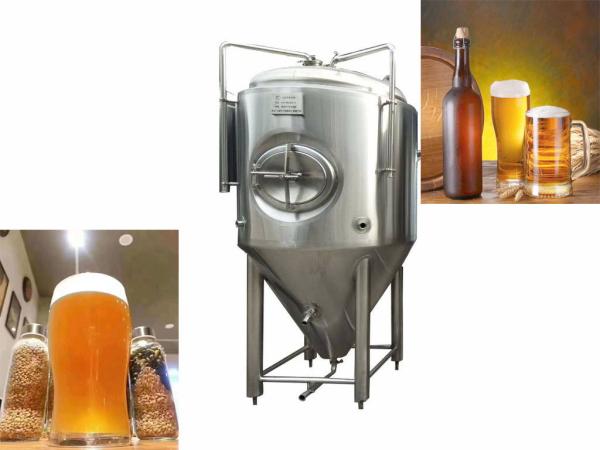

Fermentation tank with conical bottom beer brewing machine fermentation tank for beer brewing
Advantage
1) Automatic /semi-automatic operation system ,need one or two brewer operate
2) with our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes
3) we have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate
4) have good feedback from our clients
5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.
Beer brewing equipment are usually independently owned. Such breweries are
generally characterized by theire empahsis on flavor and brewing technique. We supply
microbreweries from 500L to 3500L per brew. Our service includes:complete
microbrewery equipment, installation, recipes of branded beers, staff training etc.
If necessary, it can be expanded in future.

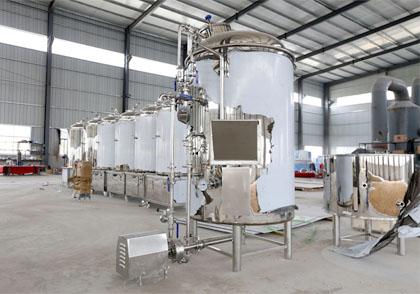

Beer Brewery Plant System
| 1.Malt Milling System | Mill machine | Stainless steel/Carbon steel |
| Grist case | Stainless steel |
| Flexible conveyor | Outer PPR or Stainless steel |
| 2.Brewhouse System | Mashtun | -Inner:3mm;outer:2mm
-Motor agitation
-Steam jackets/Electric elements/Fire direct heating |
| Lauter tun | -Inner:3mm;outer:2mm
-Rack system;
-False bottom filter |
| Kettle tun | -Inner:3mm;outer:2mm
-Steam jackets/Electric elements/Fire direct heating |
| Whirlpool tun | -Inner:3mm;outer:2mm
-Side tangent whirlpool inlet |
| Hot water tank | -Inner:3mm;outer:2mm
-Steam jackets/Electric elements/Fire direct heating |
| Accessories | -Mash pump;;Heat exchange plate;Hop back system; Brewhouse Pipes; |
| 3.Fermentation System | Fermentation tank | -Pressure:3Bar;
-Inner:3mm;outer:2mm;with insulation;
-Cooling jackets; |
| Accessories | Yeast Saving Tank; |
| 4.Cooling System | Glycol water tank | -Inner:3mm;outer:2mm |
| Accessories | Chiller; Glycol water pump; Pipes & Valves; |
| 5.CIP System | Acid tank | Pump; Pipes & Valves |
| Caustic tank |
| Trolley |
| Accessories of the CIP System |
| 6.Control System | -Automatic/Semi-auto |
| 7.Filtering System | Candle type diatomite filter/Membrane filter/Bag filter |
| Bright beer tank | Double-layer with insulation; |
| 8.Filling System | Glass bottle line | -Capacity:800-1200 BPH
-Washing heads:8;Filling heads:8;Capping heads:3
-Optional:
Capacity:1500-2000 BPH
-Washing heads:16;Filling heads:16;Capping heads:6 |
| Canning line | Capacity:1000-1500 CPH
-Filling heads:12;Capping heads:1 |
| Keg system | Keg filling machine;Keg washing machine;Keg washing and filling unity machine; |
Pre-sale service
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price.Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service.
